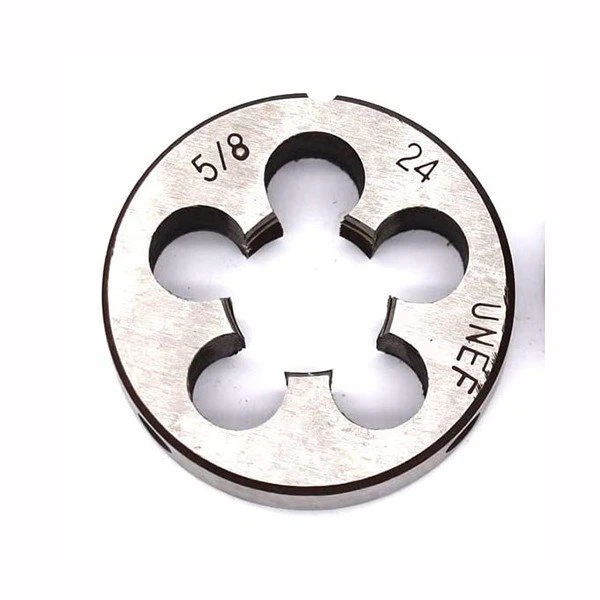

Round Tuag

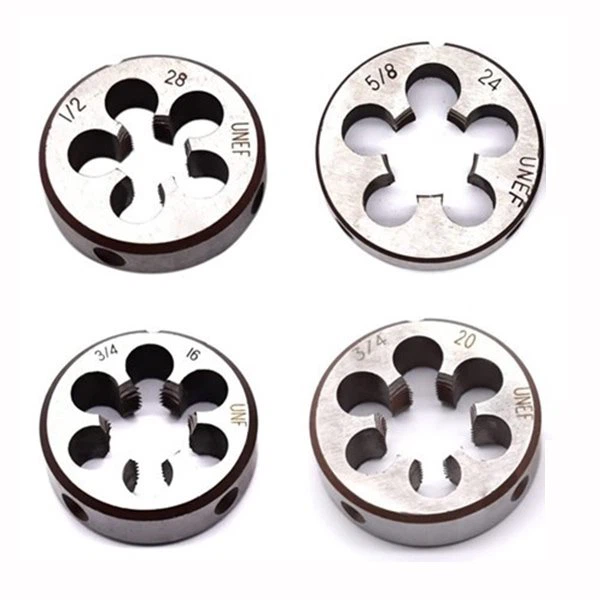

1/2-20 Round Tuag, Tshuab Xov Zoo Tes Xov Tuag, Alloy Tool Steel, muaj ntau cov qauv xws li 3/4"-20 Round Threading Tuag, 5/8"-24 round tuag .

Daim Ntawv Thov Round Die:

Ø Round threading tuag yog tsim rau cov hom phiaj dav dav.

Ø Ua tau, kho lossis ntxuav cov xov sab nraud. Zoo rau kev tu thiab kho kev ua haujlwm.

Round threading dies yog tsim rau cov hom phiaj dav dav.

Yuav ua, kho lossis ntxuav cov xov sab nraud. Zoo rau kev tu thiab kho kev ua haujlwm.

Qhov zoo ntawm SHALL Round Tuag

Ø Round Tuag: Xov loj: 1/2-20 ; Sab nraud txoj kab uas hla (OD): 38mm / 1.5 "; Thickness: 10mm / 0.4"; qeb :6g. Ua los ntawm cov cuab yeej alloy steel, hardness, siab torque, zoo toughness thiab hnav tsis kam.

Ø Daim Ntawv Thov: tuaj yeem ua, kho lossis ntxuav cov xov sab nraud. Haum rau cov hom phiaj dav dav hauv cov hlau tsis muaj steel, aluminium alloy, cam khwb cia hlau, tooj liab, hlau, txhuas, yas, thiab lwm yam .. Zoo heev rau kev saib xyuas thiab kho ua haujlwm ntawm cov kav dej, boards thiab machinery.

Ø Nta: Conical locking qhov, ruaj khov thiab tsis xoob. Zoo meej rau kev rov xa cov xov uas twb muaj lawm hauv cov ntaub ntawv nyuaj xws li hlau thiab ua cov xov tshiab hauv cov khoom muag xws li yas. Qhov saum npoo yog lubricated nrog roj los tiv thaiv xeb, cov xov yog meej thiab yooj yim kho.

Ø Ib qho yooj yim rau siv: Qhov chaw ntawm qhov tuag yuav tsum tau ua raws li cov ntsia hlau fastening nyob rau hauv nruab nrab ntawm cov ciaj ciam tuag, thiab cov ntsia hlau yuav tsum tau muab tso rau hauv lub qhov ntawm qhov tuag thiab nruj. Qhov kawg ntawm qhov bar yuav tsum tau chamfered 1 * 45 degree, thiab lub chamfer loj dhau los txiav hauv.

Ø Cov Lus Qhia: Nws yuav tsum tau thim rov qab txhua 1/4 ~ 1/2 tig los pab txhawb cov nti tawm ntawm lub qhov nti. Cov roj lubricating uas tsim nyog yuav tsum tau ntxiv rau qhov txiav ntug ntawm qhov tuag thaum tapping cov xov. Txoj kab uas hla bar yuav tsum me me (txog 0.05mm-0.15mm) tshaj lub nominal txoj kab uas hla ntawm yuav tsum tau xov. Txoj kab uas hla dhau tuaj yeem yooj yim ua rau txiav nyuaj thiab ua rau cov hniav puas tsuaj.

Hom SHALL Metric Tap & Die Set

1-1/2"-12 UNF Carbon Steel Hex Rethreading Tuag

Kev kub ceev steel adjustable round yeeb nkab Tuag Split Tuag

13pcs Metric Tap & Tuag (hexagon) teeb & 13pcs SEA Kais & Tuag (hexagon) teeb

20pcs Kais thiab Tuag Teeb

27pcs Metric Tap & Tuag Teeb

Txog Peb

SHALL GROUP, ua tus kws tshaj lij kho vajtse thiab cov khoom siv, tau tsim nyob rau xyoo 1998. Hauv 20 xyoo keeb kwm ntawm kev muab cov khoom lag luam zoo rau peb cov neeg siv khoom, peb tau pab ntau lub npe loj hlob los ntawm cov neeg tuaj tshiab rau saum 5 lossis txawm tias Top 3 hom hauv lawv. cov lag luam hauv zos thiab lub teb chaws. Vim peb pab neeg ua haujlwm tau zoo thiab kev pabcuam tshaj lij, peb tau txais kev qhuas los ntawm peb cov neeg siv khoom thiab yeej lub koob npe nrov hauv kev lag luam no.

Vim li cas thiaj xaiv SALL Ua Koj Hose Clamp Chaw Tsim Tshuaj

1. 25^thxyoo dhau los hauv kev lag luam cov cuab yeej.

2. Cov khoom zoo nrog tus nqi sib tw.

3. Customized artwork thiab packing tov.

4. ODM & OEM Customization kev pabcuam.

5. Me Moq thiab lub sijhawm xa khoom sai.

6. 100 feem pua ​​​​zoo lav thiab kev pab cuam lub neej.

7. Kev nplua nuj nrog kev koom tes nrog ntau lub npe, DEWALT, HARBOR FREIGHT, AMANA, ARMORALL, HIKOKI, JULA, Grosby pawg ...

FAQ

Dab tsi yog thread tuag?

Threading dies yog siv los tsim los yog txiav ib tug txiv neej xov nyob rau sab nraud ntawm rods los yog tuav. Threading dies muab precision txiav thiab txuas lub neej ntawm kev tuag los ntawm kev txo hnav. Taps thiab tuag yog cov cuab yeej siv los txiav xov.

Yuav ntsuas tus kais & Tuag li cas?

1. Saib cov xov fastener uas koj tab tom kho. Ntsuas qhov sab nraud ntawm cov xov.

2. Suav pes tsawg threads muaj ib nti.

3. Sib piv cov lej thiab xov hom koj nyuam qhuav sau rau cov lej sau rau ntawm cov kais dej thiab tuag.

Dab tsi yog 3 hom ntawm threads?

Muaj peb txheej txheem xov nyob rau hauv Unified ntsia hlau xov system uas tseem ceeb heev rau fasteners: UNC (coarse), UNF (zoo), thiab 8-UN (8 xov).

Lubricating roj ua ntej txiav

· Lubricant yuav tsum tau siv rau qhov txiav ntug. Nws tuaj yeem pab txuas ntxiv lub neej kev pabcuam ntawm cov cuab yeej hauv kev ua haujlwm tapping.

· Cov roj lubricating tsim nyog yog qhov tsim nyog rau kev txiav lossis txias, ua kom yooj yim dua, txhim kho smoothness thiab qhov tseeb.

· Nws yuav tsum tau thim rov qab txhua 1/4 ~ 1/2 tig los pab txhawb cov nti tawm ntawm lub qhov nti.

Cim npe nrov: round tuag, Kais thiab tuag teeb, kais thiab tuag, metric kais thiab tuag teeb, hexagon tuag, split tuag, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, lag luam wholesale
